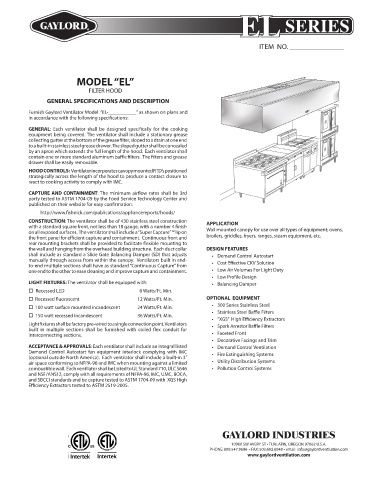

Page 28 - Gaylord Blue Book 2021

EL SERIES

ITEM NO. _______________

MODEL “EL”

FILTER HOOD
GENERAL SPECIFICATIONS AND DESCRIPTION
Furnish Gaylord Ventilator Model “EL-___________” as shown on plans and
in accordance with the following specifications:
GENERAL: Each ventilator shall be designed specifically for the cooking
equipment being covered. The ventilator shall include a stationary grease
collecting gutter at the bottom of the grease filter, sloped to a drain at one end
to a built-in stainless steel grease drawer. The sloped gutter shall be concealed
by an apron which extends the full length of the hood. Each ventilator shall
contain one or more standard aluminum baffle filters. The filters and grease
drawer shall be easily removable.
HOOD CONTROLS: Ventilator incorporates canopy mounted RTD’s positioned
strategically across the length of the hood to produce a contact closure to
react to cooking activity to comply with IMC.
CAPTURE AND CONTAINMENT: The minimum airflow rates shall be 3rd
party tested to ASTM 1704-09 by the Food Service Technology Center and
published on their website for easy confirmation.
http://www.fishnick.com/publications/appliancereports/hoods/
CONSTRUCTION: The ventilator shall be of 430 stainless steel construction APPLICATION
with a standard square front, not less than 18 gauge, with a number 4 finish
on all exposed surfaces. The ventilator shall include a “Super Capture” ™ lip on Wall mounted canopy for use over all types of equipment; ovens,
the front panel for efficient capture and containment. Continuous front and broilers, griddles, fryers, ranges, steam equipment, etc.
rear mounting brackets shall be provided to facilitate flexible mounting to
the wall and hanging from the overhead building structure. Each duct collar DESIGN FEATURES
shall include as standard a Slide Gate Balancing Damper (SD) that adjusts • Demand Control Autostart
manually through access from within the canopy. Ventilators built in end-
to-end multiple sections shall have as standard “Continuous Capture” from • Cost Effective CKV Solution
one end to the other to ease cleaning and improve capture and containment. • Low Air Volumes For Light Duty
• Low Profile Design
LIGHT FIXTURES: The ventilator shall be equipped with: • Balancing Damper
o Recessed LED 6 Watts/Ft. Min.
o Recessed fluorescent 12 Watts/Ft. Min. OPTIONAL EQUIPMENT
o 100 watt surface mounted incandescent 24 Watts/Ft. Min. • 300 Series Stainless Steel
• Stainless Steel Baffle Filters
o 150 watt recessed incandescent 36 Watts/Ft. Min. • “XGS” High Efficiency Extractors
Light fixtures shall be factory pre-wired to a single connection point. Ventilators • Spark Arrestor Baffle Filters
built in multiple sections shall be furnished with coiled flex conduit for
interconnecting sections. • Faceted Front
• Decorative Facings and Trim
ACCEPTANCE & APPROVALS: Each ventilator shall include an integral listed • Demand Control Ventilation
Demand Control Autostart fan equipment interlock complying with IMC • Fire Extinguishing Systems
(optional outside North America). Each ventilator shall include a built-in 3”
air space conforming to NFPA-96 and IMC when mounting against a limited • Utility Distribution Systems
combustible wall. Each ventilator shall be Listed to UL Standard 710, ULC S646 • Pollution Control Systems
and NSF/ANSI 2, comply with all requirements of NFPA-96, IMC, UMC, BOCA,
and SBCCI standards and be capture tested to ASTM 1704-09 with XGS High
Efficiency Extractors tested to ASTM 2519-2005.

GAYLORD INDUSTRIES

10900 SW AVERY ST • TUALATIN, OREGON 97062 U.S.A.
PHONE: 800.547.9696 • FAX: 503.692.6048 • email: info@gaylordventilation.com
www.gaylordventilation.com
