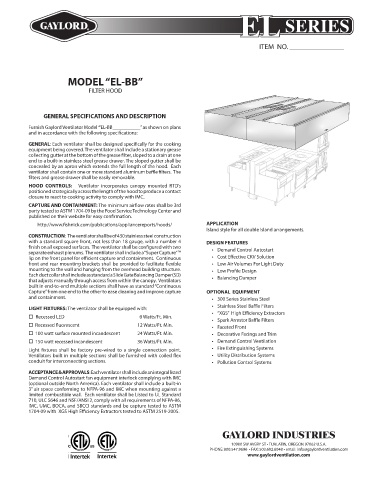

Page 30 - Gaylord Blue Book 2021

EL SERIES

ITEM NO. _______________

MODEL “EL-BB”

FILTER HOOD

GENERAL SPECIFICATIONS AND DESCRIPTION

Furnish Gaylord Ventilator Model “EL-BB___________” as shown on plans
and in accordance with the following specifications:
GENERAL: Each ventilator shall be designed specifically for the cooking
equipment being covered. The ventilator shall include a stationary grease
collecting gutter at the bottom of the grease filter, sloped to a drain at one
end to a built-in stainless steel grease drawer. The sloped gutter shall be
concealed by an apron which extends the full length of the hood. Each
ventilator shall contain one or more standard aluminum baffle filters. The
filters and grease drawer shall be easily removable.
HOOD CONTROLS: Ventilator incorporates canopy mounted RTD’s
positioned strategically across the length of the hood to produce a contact
closure to react to cooking activity to comply with IMC.
CAPTURE AND CONTAINMENT: The minimum airflow rates shall be 3rd
party tested to ASTM 1704-09 by the Food Service Technology Center and
published on their website for easy confirmation.
http://www.fishnick.com/publications/appliancereports/hoods/ APPLICATION
Island style for all double island arrangements.
CONSTRUCTION: The ventilator shall be of 430 stainless steel construction
with a standard square front, not less than 18 gauge, with a number 4 DESIGN FEATURES
finish on all exposed surfaces. The ventilator shall be configured with two • Demand Control Autostart
separate exhaust plenums. The ventilator shall include a “Super Capture” ™
lip on the front panel for efficient capture and containment. Continuous • Cost Effective CKV Solution
front and rear mounting brackets shall be provided to facilitate flexible • Low Air Volumes For Light Duty
mounting to the wall and hanging from the overhead building structure. • Low Profile Design
Each duct collar shall include as standard a Slide Gate Balancing Damper (SD) • Balancing Damper
that adjusts manually through access from within the canopy. Ventilators
built in end-to-end multiple sections shall have as standard “Continuous
Capture” from one end to the other to ease cleaning and improve capture OPTIONAL EQUIPMENT
and containment. • 300 Series Stainless Steel
LIGHT FIXTURES: The ventilator shall be equipped with: • Stainless Steel Baffle Filters
o Recessed LED 6 Watts/Ft. Min. • “XGS” High Efficiency Extractors
• Spark Arrestor Baffle Filters
o Recessed fluorescent 12 Watts/Ft. Min. • Faceted Front
o 100 watt surface mounted incandescent 24 Watts/Ft. Min. • Decorative Facings and Trim
o 150 watt recessed incandescent 36 Watts/Ft. Min. • Demand Control Ventilation
Light fixtures shall be factory pre-wired to a single connection point. • Fire Extinguishing Systems
Ventilators built in multiple sections shall be furnished with coiled flex • Utility Distribution Systems
conduit for interconnecting sections. • Pollution Control Systems
ACCEPTANCE & APPROVALS: Each ventilator shall include an integral listed
Demand Control Autostart fan equipment interlock complying with IMC
(optional outside North America). Each ventilator shall include a built-in
3” air space conforming to NFPA-96 and IMC when mounting against a
limited combustible wall. Each ventilator shall be Listed to UL Standard
710, ULC S646 and NSF/ANSI 2, comply with all requirements of NFPA-96,
IMC, UMC, BOCA, and SBCCI standards and be capture tested to ASTM
1704-09 with XGS High Efficiency Extractors tested to ASTM 2519-2005.
