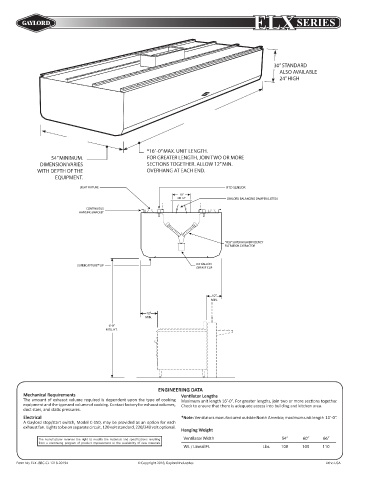

ELX SERIES

30” STANDARD
ALSO AVAILABLE
24” HIGH

*16’ -0” MAX. UNIT LENGTH.
54” MINIMUM. FOR GREATER LENGTH, JOIN TWO OR MORE
DIMENSION VARIES SECTIONS TOGETHER. ALLOW 12” MIN.
WITH DEPTH OF THE OVERHANG AT EACH END.
EQUIPMENT.
LIGHT FIXTURE RTD SENSOR
“AUTOSTART” SENSOR
10”
OR 12” GAYLORD BALANCING DAMPER (LISTED)
CONTINUOUS
HANGING BRACKET

“XGS” SUPER HIGH EFFICIENCY
FILTRATION EXTRACTOR

0.5 GALLON
SUPERCAPTURE™ LIP
GREASE CUP

12”
MIN.

12”
MIN.
6’-8”
MTG. HT.

ENGINEERING DATA
Mechanical Requirements Ventilator Lengths
The amount of exhaust volume required is dependent upon the type of cooking Maximum unit length 16’-0”. For greater lengths, join two or more sections together.
equipment and the type and volume of cooking. Contact factory for exhaust volumes, Check to ensure that there is adequate access into building and kitchen area.
duct sizes, and static pressures.
Electrical *Note: Ventilators manufactured outside North America; maximum unit length 10’-0”.
A Gaylord stop/start switch, Model C-150, may be provided as an option for each
exhaust fan. Lights to be on separate circuit, 120 volt standard, 220/240 volt optional.
Hanging Weight
The manufacturer reserves the right to modify the materials and specifications resulting Ventilator Width 54” 60” 66”
from a continuing program of product improvement or the availability of new materials
Wt. / Lineal Ft. Lbs. 100 105 110

Form No. ELX -BBC-CL 1218-20194 © Copyright 2018, Gaylord Industries Litho USA
