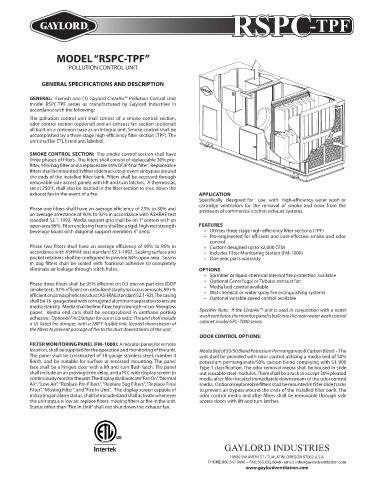

Page 100 - Gaylord Blue Book 2021

RSPC
RSPC -TPF
-TPF

MODEL “RSPC-TPF”
POLLUTION CONTROL UNIT

GENERAL SPECIFICATIONS AND DESCRIPTION

GENERAL: Furnish one (1) Gaylord ClearAir™ Pollution Control Unit
model RSPC-TPF series as manufactured by Gaylord Industries in
accordance with the following:
The pollution control unit shall consist of a smoke control section,
odor control section (optional) and an exhaust fan section (optional)
all built on a common base as an integral unit. Smoke control shall be
accomplished by a three stage high-efficiency filter section (TPF). The
unit shall be ETL listed and labeled.

SMOKE CONTROL SECTION: The smoke control section shall have
three phases of filters. The filters shall consist of replaceable 30% pre-
filter, 95% bag filter and a replaceable 95% DOP final filter. Replaceable
filters shall be mounted in filter slide tracks to prevent air bypass around
the ends of the installed filter bank. Filters shall be accessed through
removable side access panels with lift and turn latches. A thermostat,
set at 250°F, shall also be located in the filter section to shut down the
exhaust fan in the event of a fire. APPLICATION
Specifically designed for use with high-efficiency water wash or
cartridge ventilators for the removal of smoke and odor from the
Phase one filters shall have an average efficiency of 25% to 30% and airstream of commercial kitchen exhaust systems.
an average arrestance of 90% to 92% in accordance with ASHRAE test
standard 52.1-1992. Media support grid shall be on 1” centers with an
open area 96%. Filter enclosing frame shall be a rigid, high wet strength FEATURES
beverage board with diagonal support members 4” deep. • Utilizes three stage high-efficiency filter sections (TPF)
• Pre-engineered for efficient and cost-effective smoke and odor
control
Phase two filters shall have an average efficiency of 90% to 95% in • Custom designed up to 32,000 CFM
accordance with ASHRAE test standard 52.1-1992. Sealing surface and • Includes Filter Monitoring Station (FM-1000)
pocket retainers shall be configured to provide 84% open area. Seams • One year parts warranty
in bag filters shall be sealed with foamseal adhesive to completely
eliminate air leakage through stitch holes. OPTIONS
• Sprinkler or liquid chemical internal fire protection available
Phase three filters shall be 95% efficient on 0.3 micron particles (DOP • Optional Centrifugal or Tubular exhaust fan
smoke test), 97% efficient on nebulized staphylococcus aerosols, 99+% • Media bed control available
• Wet chemical or water spray fire extinguishing systems
efficient on atmospheric test dust (ASHRAE standard 52.1-92). The casing
shall be 16- gauge steel with corrugated aluminum separators to ensure • Optional variable speed control available
media stability. Media shall be fine-fiber, high strength micro-fiberglass
paper. Media end cuts shall be encapsulated in urethane potting Specifier Note: If the ClearAir™ unit is used in conjunction with a water
adhesive. Optional Fire Damper for use in Canada: The unit shall include wash ventilator, the monitor panel is built into the main water wash control
a UL listed fire damper, with a 280°F fusible link, located downstream of cabinet model GPC-7000 series.
the filters to prevent passage of fire to the duct downstream of the unit.
ODOR CONTROL OPTIONS:
FILTER MONITORING PANEL (FM-1000): A monitor panel, for remote
location, shall be supplied for the operation and monitoring of the unit. Media Bed of 50/50 Blend Potassium Permanganate & Carbon Blend - The
The panel shall be constructed of 18-gauge stainless steel, number 4 unit shall be provided with odor control utilizing a media bed of 50%
finish, and be suitable for surface or recessed mounting. The panel potassium permanganate/50% carbon blend complying with UL 900
face shall be a hinged door with a lift and turn flush latch. The panel Type 1 classification. The odor removal media shall be housed in slide
shall include an air proving time delay, and a PLC with display screen to out reusable steel modules. There shall be a rack to accept 30% pleated
continuously monitor the unit. The display shall indicate “Fan On”, “Normal media after filter located immediately downstream of the odor control
Air”, “Low Air”, “Replace Pre-Filters”, “Replace Bag Filters”, “Replace Final media. Optional replaceable filters shall be mounted in filter slide tracks
Filter”, “Missing Filter”, and “Fire In Unit”. The display screen capable of to prevent air bypass around the ends of the installed filter bank. The
indicating an alarm status, shall be included and shall activate whenever odor control media and after filters shall be removable through side
the unit status is low air, replace filters, missing filters or fire in the unit. access doors with lift and turn latches.
Status other than “Fire In Unit” shall not shut down the exhaust fan.
