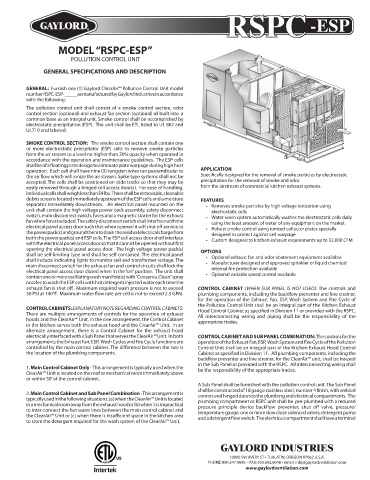

Page 98 - Gaylord Blue Book 2021

RSPC -ESP

MODEL “RSPC-ESP”
POLLUTION CONTROL UNIT

GENERAL SPECIFICATIONS AND DESCRIPTION

GENERAL: Furnish one (1) Gaylord ClearAir™ Pollution Control Unit model
number RSPC-ESP-_____ as manufactured by Gaylord Industries in accordance
with the following:
The pollution control unit shall consist of a smoke control section, odor
control section (optional) and exhaust fan section (optional) all built into a
common base as an integral unit. Smoke control shall be accomplished by
electrostatic precipitation (ESP). The unit shall be ETL listed to UL 867 and
UL710 and labeled.

SMOKE CONTROL SECTION: The smoke control section shall contain one
or more electrostatic precipitator (ESP) cells to remove smoke particles
from the air stream to a level no higher than 20% opacity when operated in
accordance with the operation and maintenance guidelines. The ESP cells
shall be of a floating plate design to eliminate plate warpage during high heat
operation. Each cell shall have nine (9) tungsten wires run perpendicular to APPLICATION
the air flow which will ionize the air stream. Spike type systems shall not be Specifically designed for the removal of smoke particles by electrostatic
accepted. The cells shall be positioned on slide tracks so that they may be precipitation for the removal of smoke and odor
easily removed through a hinged cell access door(s). For ease of handling, from the airstream of commercial kitchen exhaust systems.
individual cells shall weigh less than 54 lbs. There shall be removable, cleanable
debris screens located immediately upstream of the ESP cells and a moisture FEATURES
separator immediately downstream. An electrical panel mounted on the • Removes smoke particles by high voltage ionization using
unit shall contain the high voltage power pack assembly, safety disconnect electrostatic cells
switch, main disconnect switch, fuses and a magnetic starter for the exhaust • Water-wash system automatically washes the electrostatic cells daily
fan when fan is included. The safety disconnect switch shall interface with the using the least amount of water of any equipment on the market
electrical panel access door such that when opened it will shut off service to • Robust smoke control using ionized collector plates specially
the power pack(s) and ground them to drain the residual electrical charge from designed to protect against cell warpage
both the power pack(s) and ESP cells. The ESP cell access door shall interface • Custom designed to kitchen exhaust requirements up to 32,000 CFM
with the electrical panel access door so that it cannot be opened without first
opening the electrical panel access door. The high voltage power pack(s) OPTIONS
shall be self-limiting type and shall be self-contained. The electrical panel • Optional exhaust fan and odor abatement equipment available
shall include indicating lights to monitor cell and transformer voltage. The
main disconnect switch for the exhaust fan and control circuits shall lock the • Manufacturer designed and approved sprinkler or liquid chemical
internal fire protection available
electrical panel access door closed when in the “on” position. The unit shall • Optional variable speed control available
contain one or more oscillating wash manifold(s) with “Conserva-Clean” spray
nozzles to wash the ESP cells with hot detergent injected water each time the
exhaust fan is shut off. Maximum required wash pressure is not to exceed CONTROL CABINET (WHEN SUB PANEL IS NOT USED): The controls and
30 PSI at 140°F. Maximum water flow rate per cell is not to exceed 2.3 GPM. plumbing components, including the backflow preventer and line strainer,
for the operation of the Exhaust Fan, ESP, Wash System and Fire Cycle of
the Pollution Control Unit shall be an integral part of the Kitchen Exhaust
CONTROL CABINETS: EXPLANATORY NOTE REGARDING CONTROL CABINETS: Hood Control Cabinet as specified in Division 11 or provided with the RSPC.
There are multiple arrangements of controls for the operation of exhaust All interconnecting wiring and piping shall be the responsibility of the
hoods and the ClearAir™ Unit. In the one arrangement, the Control Cabinet appropriate trades.
in the kitchen serves both the exhaust hood and the ClearAir™ Unit. In an
alternate arrangement, there is a Control Cabinet for the exhaust hood
electrically interfaced with a Sub Panel that serves the ClearAir™ Unit. In both CONTROL CABINET AND SUB PANEL COMBINATION: The controls for the
arrangements the Exhaust Fan, ESP, Wash Cycles and Fire Cycle functions are operation of the Exhaust Fan, ESP, Wash System and Fire Cycle of the Pollution
controlled by the main control cabinet. The difference between the two is Control Unit shall be an integral part of the Kitchen Exhaust Hood Control
the location of the plumbing components. Cabinet as specified in Division 11. All plumbing components, including the
backflow preventer and line strainer, for the ClearAir™ unit, shall be housed
in the Sub Panel or provided with the RSPC. All interconnecting wiring shall
1. Main Control Cabinet Only - This arrangement is typically used when the be the responsibility of the appropriate trades.
ClearAir™ Unit is located on the roof or mechanical room immediately above
or within 50’ of the control cabinet.
A Sub Panel shall be furnished with the pollution control unit. The Sub Panel
shall be constructed of 18 gauge stainless steel, number 4 finish, with welded
2. Main Control Cabinet and Sub Panel Combination - This arrangement is corners and hinged doors to the plumbing and electrical compartments. The
typically used in the following situations: (a) when the ClearAir™ Unit is located plumbing compartment or RSPC unit shall be pre-plumbed with a reduced
in a mechanical room away from the exhaust hood or (b) when it is impractical pressure principle device backflow preventer, shut off valve, pressure/
to inter-connect the hot water lines between the main control cabinet and temperature gauge, one or more slow close solenoid valves, detergent pump
the ClearAir™ Unit or (c) when there is insufficient space in the kitchen area and a detergent flow switch. The electrical compartment shall have a terminal
to store the detergent required for the wash system of the ClearAir™ Unit.
