P. 94

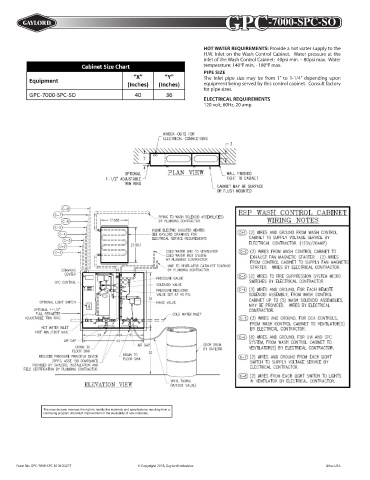

GPC            -7000-SPC-SO





                                                                    HOT WATER REQUIREMENTS: Provide a hot water supply to the
                                                                    H.W. Inlet on the Wash Control Cabinet.  Water pressure at the
                                                                    inlet of the Wash Control Cabinet:  40psi min. – 80psi max.  Water
                                                                    temperature: 140°F min, - 180°F max.
                                                                    PIPE SIZE
                                                                    The Inlet pipe size may be from 1” to 1-1/4” depending upon
                                                                    equipment being served by this control cabinet.  Consult factory
                                                                    for pipe sizes.
                                                                    ELECTRICAL REQUIREMENTS
                                                                    120 volt, 60Hz, 20 amp





























































               The manufacturer reserves the right to modify the materials and specifications resulting from a
               continuing program of product improvement or the availability of new materials.









      Form No. GPC-7000-SPC 1018-23277         © Copyright 2018, Gaylord Industries                          Litho USA
