GDS Duct Sump
ITEM NO._____________
MODEL NO.___________

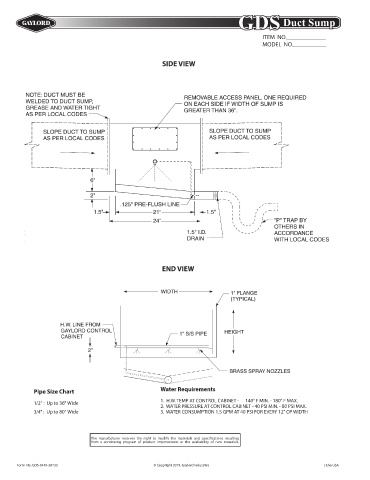

SIDE VIEW
END VIEW
Pipe Size Chart Water Requirements
1/2" : Up to 36" Wide 1. H.W. TEMP AT CONTROL CABINET - 140° F MIN. - 180° F MAX.
2. WATER PRESSURE AT CONTROL CABINET - 40 PSI MIN. - 80 PSI MAX.
3/4" : Up to 80" Wide 3. WATER CONSUMPTION 1.5 GPM AT 40 PSI FOR EVERY 12" OF WIDTH
The manufacturer reserves the right to modify the materials and specifications resulting
from a continuing program of product improvement or the availability of new materials.
Form No. GDS-0419-30733 © Copyright 2019, Gaylord Industries Litho USA
