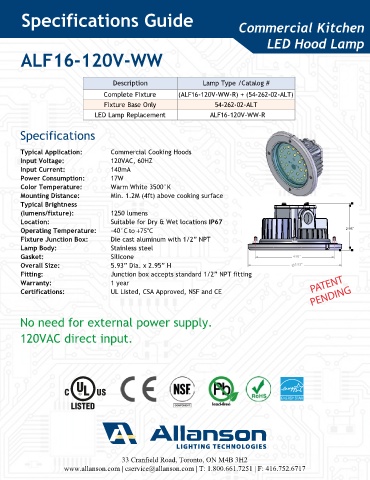

Specifications Guide                                                    Commercial Kitchen



                                                                                         LED Hood Lamp

        ALF16-120V-WW




                                      Description                   Lamp Type /Catalog #

                                   Complete Fixture         (ALF16-120V-WW-R) + (54-262-02-ALT)
                                   Fixture Base Only                    54-262-02-ALT
                                LED Lamp Replacement                   ALF16-120V-WW-R

        Specifications


        Typical Application:          Commercial Cooking Hoods
        Input Voltage:                120VAC, 60HZ
        Input Current:                140mA
        Power Consumption:            17W
        Color Temperature:            Warm White 3500°K
        Mounting Distance:            Min. 1.2M (4ft) above cooking surface
        Typical Brightness
        (lumens/fixture):             1250 lumens
        Location:                     Suitable for Dry & Wet locations IP67
        Operating Temperature:        -40°C to +75°C
        Fixture Junction Box:         Die cast aluminum with 1/2” NPT
        Lamp Body:                    Stainless steel
        Gasket:                       Silicone
        Overall Size:                 5.93” Dia. x 2.95” H
        Fitting:                      Junction box accepts standard 1/2” NPT fitting
        Warranty:                     1 year                                                            PATENT
        Certifications:               UL Listed, CSA Approved, NSF and CE                               PENDING




        No need for external power supply.
        120VAC direct input.
























                                         33 Cranfield Road, Toronto, ON M4B 3H2
                      www.allanson.com | cservice@allanson.com | T: 1.800.661.7251 | F: 416.752.6717
