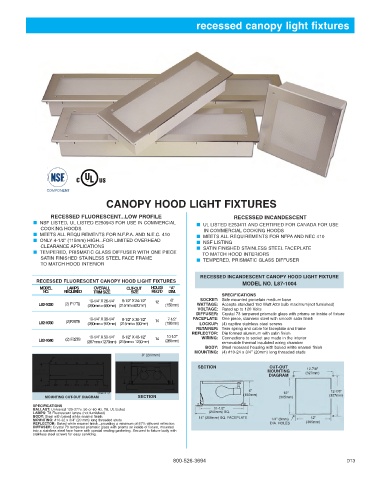

Page 106 - Gaylord Blue Book 2021

recessed canopy light fixtures

COMPONENT
CANOPY HOOD LIGHT FIXTURES

RECESSED FLUORESCENT...LOW PROFILE RECESSED INCANDESCENT
NSF LISTED, UL LISTED E250943 FOR USE IN COMMERCIAL
UL LISTED E253411 AND CERTIFIED FOR CANADA FOR USE
COOKING HOODS IN COMMERCIAL COOKING HOODS
MEETS ALL REQUIREMENTS FOR N.F.P.A. AND N.E.C. 410 MEETS ALL REQUIREMENTS FOR NFPA AND NEC 410
ONLY 4-1/2” (115mm) HIGH...FOR LIMITED OVERHEAD NSF LISTING
CLEARANCE APPLICATIONS
SATIN FINISHED STAINLESS STEEL FACEPLATE
TEMPERED, PRISMATIC GLASS DIFFUSER WITH ONE PIECE TO MATCH HOOD INTERIORS
SATIN FINISHED STAINLESS STEEL FACE FRAME TEMPERED, PRISMATIC GLASS DIFFUSER
TO MATCH HOOD INTERIOR
RECESSED INCANDESCENT CANOPY HOOD LIGHT FIXTURE
RECESSED FLUORESCENT CANOPY HOOD LIGHT FIXTURES
MODEL NO. L87-1004
MODEL LAMPS OVERALL CUT-OUT HOLES “A”
NO. REQUIRED TRIM SIZE SIZE REQ’D DIM.
SPECIFICATIONS
10-1/4” X 26-1/4” 8-1/2” X 24-1/2” 12 6” SOCKET: Side mounted porcelain medium base
L82-1020 (2) F17T8 (260mm x 660mm) (215mm x620mm) (150mm) WATTAGE: Accepts standard 150 Watt A23 bulb maximum(not furnished)
VOLTAGE: Rated up to 120 Volts
DIFFUSER: Crystal 73 tempered prismatic glass with prisms on inside of fixture
10-1/4” X 38-1/4” 8-1/2” X 36-1/2” 7-1/2” FACEPLATE: One piece, stainless steel with smooth satin finish
L82-1030 (2)F25T8 (260mm x 970mm) (215mm x 930mm) 14 (190mm) LOCKUP: (4) captive stainless steel screws
RETAINER: Twin spring and cable for faceplate and frame
REFLECTOR: Die formed aluminum with satin finish
10-1/4 ” X 50-1/4” 8-1/2” X 48-1/2” 10-1/2” WIRING: Connections to socket are made in the interior
L82-1040 (2) F32T8 (267mm x1270mm) (215mm x 1230mm) 14 (265mm) removable thermal insulated wiring chamber
BODY: Steel recessed housing with baked white enamel finish
MOUNTING: (4) #10-24 x 3/4” (20mm) long threaded studs
8” (200mm)
1/4”(6mm) DIA. HOLES
SECTION CUT-OUT
9-3/16” MOUNTING 12-7/8”
(233mm) CUT-OUT 4-1/2” DIAGRAM (327mm)
(115mm)
3-1/4” A A A A
(82mm) 3-1/4” 10-1/4” (260mm) 6” 12-7/8”
(82mm) 12”
MOUNTING CUT-OUT DIAGRAM SECTION (150mm) (305mm) (327mm)
SPECIFICATIONS
BALLAST: Universal 120-277v, 50 or 60 Hz, T8, UL Listed 11-1/2”
LAMPS: T8 Fluorescent lamps (not furnished) (240mm) SQ.
BODY: Steel with baked white enamel finish 14” (350mm) SQ. FACEPLATE 12”
MOUNTING: #10-32 x 3/4” (20 mm) long threaded studs 1/4” (6mm) (305mm)
REFLECTOR: Baked white enamel finish...providing a minimum of 87% diffused reflection DIA. HOLES
DIFFUSER: Crystal 73 tempered prismatic glass with prisms on inside of fixture, mounted
into a stainless steel face frame with special sealing gasketing. Secured to fixture body with
stainless steel screws for easy servicing.
800-526-3694 D13
