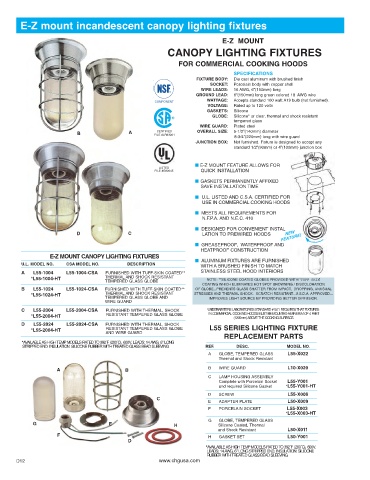

Page 107 - Gaylord Blue Book 2021

E-Z mount incandescent canopy lighting fixtures

E-Z MOUNT
CANOPY LIGHTING FIXTURES

FOR COMMERCIAL COOKING HOODS
SPECIFICATIONS
FIXTURE BODY: Die cast aluminum with brushed finish
SOCKET: Porcelain body with copper shell
WIRE LEADS: 16 AWG, 6”(150mm) long
GROUND LEAD: 6”(150mm) long green colored 18 AWG wire
WATTAGE: Accepts standard 100 watt A19 bulb (not furnished).
COMPONENT
VOLTAGE: Rated up to 120 volts
GASKETS: Silicone
GLOBE: Silicone* or clear, thermal and shock resistant
tempered glass
WIRE GUARD: Plated steel
CERTIFIED
B A FILE #LR63261 OVERALL SIZE: 5-1/2”(140mm) diameter
8-3/4”(220mm) long with wire guard
JUNCTION BOX: Not furnished. Fixture is designed to accept any
standard 1/2”(90mm) or 4”(100mm) junction box

E-Z MOUNT FEATURE ALLOWS FOR
LISTED
FILE #E80045 QUICK INSTALLATION
GASKETS PERMANENTLY AFFIXED
SAVE INSTALLATION TIME
U.L. LISTED AND C.S.A. CERTIFIED FOR
USE IN COMMERCIAL COOKING HOODS

MEETS ALL REQUIREMENTS FOR
N.F.P.A. AND N.E.C. 410
DESIGNED FOR CONVENIENT INSTAL
D C LATION TO PREWIRED HOODS NEW
FEATURE!
GREASEPROOF, WATERPROOF AND
HEATPROOF CONSTRUCTION
E-Z MOUNT CANOPY LIGHTING FIXTURES
ALUMINUM FIXTURES ARE FURNISHED
U.L. MODEL NO. CSA MODEL NO. DESCRIPTION
WITH A BRUSHED FINISH TO MATCH
A L55-1004 L55-1004-CSA FURNISHED WITH TUFF-SKIN COATED** STAINLESS STEEL HOOD INTERIORS
THERMAL AND SHOCK RESISTANT
*L55-1004-HT NOTE: **SILICONE COATED GLOBES PROVIDED WITH “TUFF-SKIN”
TEMPERED GLASS GLOBE
COATING WHICH ELIMINATES HOT SPOT BROWNING / DISCOLORATION
B L55-1024 L55-1024-CSA FURNISHED WITH TUFF-SKIN COATED** OF GLOBE...PREVENTS GLASS SHATTER FROM IMPACT, DROPPING, UNUSUAL
*L55-1024-HT THERMAL AND SHOCK RESISTANT STRESSES AND THERMAL SHOCK. SCRATCH RESISTANT...U.S.D.A. APPROVED...
TEMPERED GLASS GLOBE AND IMPROVES LIGHT SOURCE BY PROVIDING BETTER DIFFUSION.
WIRE GUARD
C L55-2004 L55-2004-CSA FURNISHED WITH THERMAL, SHOCK UNDERWRITERS LABORATORIES STANDARD #1571 REQUIRES THAT FIXTURES
*L55-2004-HT RESISTANT TEMPERED GLASS GLOBE IN COMMERCIAL COOKING HOODS MUST BE MOUNTED A MINIMUM OF 4 FEET
(1200mm) ABOVE THE COOKING SURFACE.
D L55-2024 L55-2024-CSA FURNISHED WITH THERMAL, SHOCK
RESISTANT TEMPERED GLASS GLOBE L55 SERIES LIGHTING FIXTURE
*L55-2004-HT
AND WIRE GUARD
REPLACEMENT PARTS
*AVAILABLE AS HIGH TEMP MODELS RATED TO 392˚F (200˚C), 600V, LEADS: 14 AWG, 6” LONG
STRIPPED END. INSULATION: SILICONE RUBBER WITH TREATED GLASS BEAD SLEEVING REF. DESC. MODEL NO.
A GLOBE, TEMPERED GLASS L55-X022
Thermal and Shock Resistant
B WIRE GUARD L10-X020
A B
C LAMP HOUSING ASSEMBLY
Complete with Porcelain Socket L55-Y001
and required Silicone Gasket *L55-Y001-HT
D SCREW L55-X006
C
E ADAPTER PLATE L50-X009
F PORCELAIN SOCKET L55-X003
*L55-X003-HT
G GLOBE, TEMPERED GLASS
G E H Silicone Coated, Thermal
and Shock Resistant L50-X011
F H GASKET SET L50-Y001
D
*AVAILABLE AS HIGH TEMP MODELS RATED TO 392˚F (200˚C), 600V,
LEADS: 14 AWG, 6” LONG STRIPPED END. INSULATION: SILICONE
RUBBER WITH TREATED GLASS BEAD SLEEVING
