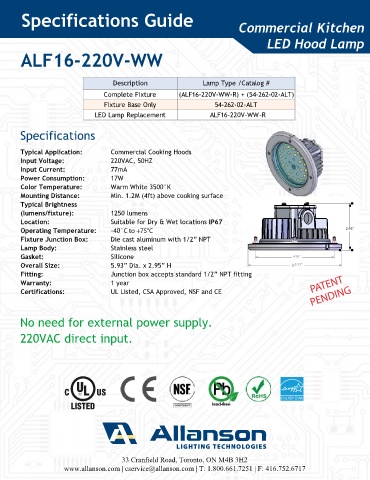

Specifications Guide Commercial Kitchen
LED Hood Lamp
ALF16-220V-WW
Description Lamp Type /Catalog #
Complete Fixture (ALF16-220V-WW-R) + (54-262-02-ALT)
Fixture Base Only 54-262-02-ALT
LED Lamp Replacement ALF16-220V-WW-R
Specifications
Typical Application: Commercial Cooking Hoods
Input Voltage: 220VAC, 50HZ
Input Current: 77mA
Power Consumption: 17W
Color Temperature: Warm White 3500°K
Mounting Distance: Min. 1.2M (4ft) above cooking surface
Typical Brightness
(lumens/fixture): 1250 lumens
Location: Suitable for Dry & Wet locations IP67
Operating Temperature: -40°C to +75°C
Fixture Junction Box: Die cast aluminum with 1/2” NPT
Lamp Body: Stainless steel
Gasket: Silicone
Overall Size: 5.93” Dia. x 2.95” H
Fitting: Junction box accepts standard 1/2” NPT fitting
Warranty: 1 year PATENT
Certifications: UL Listed, CSA Approved, NSF and CE PENDING
No need for external power supply.
220VAC direct input.
33 Cranfield Road, Toronto, ON M4B 3H2
www.allanson.com | cservice@allanson.com | T: 1.800.661.7251 | F: 416.752.6717
