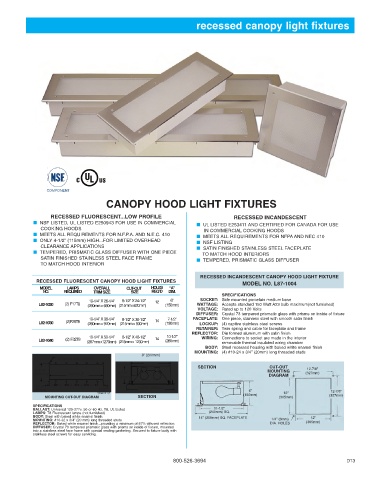

P. 104

recessed canopy light fixtures

































                COMPONENT
                                    CANOPY HOOD LIGHT FIXTURES

                  RECESSED FLUORESCENT...LOW PROFILE                          RECESSED INCANDESCENT
               NSF LISTED, UL LISTED E250943 FOR USE IN COMMERCIAL
                                                                     UL LISTED E253411 AND CERTIFIED FOR CANADA FOR USE
              COOKING HOODS                                         IN COMMERCIAL COOKING HOODS
               MEETS ALL REQUIREMENTS FOR N.F.P.A. AND N.E.C. 410     MEETS ALL REQUIREMENTS FOR NFPA AND NEC 410
              ONLY 4-1/2” (115mm) HIGH...FOR LIMITED OVERHEAD       NSF LISTING
              CLEARANCE APPLICATIONS
                                                                     SATIN FINISHED STAINLESS STEEL FACEPLATE
              TEMPERED, PRISMATIC GLASS DIFFUSER WITH ONE PIECE     TO MATCH HOOD INTERIORS
              SATIN FINISHED STAINLESS STEEL FACE FRAME             TEMPERED, PRISMATIC GLASS DIFFUSER
              TO MATCH HOOD INTERIOR
                                                                   RECESSED INCANDESCENT CANOPY HOOD LIGHT FIXTURE
             RECESSED FLUORESCENT CANOPY HOOD LIGHT FIXTURES
                                                                                 MODEL NO. L87-1004
              MODEL    LAMPS    OVERALL    CUT-OUT  HOLES  “A”
               NO.    REQUIRED  TRIM SIZE   SIZE   REQ’D  DIM.
                                                                          SPECIFICATIONS
                              10-1/4” X 26-1/4”  8-1/2” X 24-1/2”  12  6”   SOCKET: Side mounted porcelain medium base
              L82-1020  (2) F17T8  (260mm x 660mm) (215mm x620mm)  (150mm)  WATTAGE: Accepts standard 150 Watt A23 bulb maximum(not furnished)
                                                                  VOLTAGE:  Rated up to 120 Volts
                                                                  DIFFUSER: Crystal 73 tempered prismatic glass with prisms on inside of fixture
                              10-1/4” X 38-1/4”  8-1/2” X 36-1/2”  7-1/2”  FACEPLATE:  One piece, stainless steel with smooth satin finish
              L82-1030  (2)F25T8  (260mm x 970mm) (215mm x 930mm)  14  (190mm)  LOCKUP: (4) captive stainless steel screws
                                                                  RETAINER: Twin spring and cable for faceplate and frame
                                                                REFLECTOR: Die formed aluminum with satin finish
                              10-1/4  ” X 50-1/4”  8-1/2” X 48-1/2”  10-1/2”  WIRING: Connections to socket are made in the interior
              L82-1040  (2) F32T8  (267mm x1270mm) (215mm x 1230mm)  14  (265mm)  removable thermal insulated wiring chamber
                                                                     BODY: Steel recessed housing with baked white enamel finish
                                                                 MOUNTING: (4) #10-24 x 3/4” (20mm) long threaded studs
                                                8” (200mm)
                    1/4”(6mm) DIA. HOLES
                                                                   SECTION                CUT-OUT
             9-3/16”                                                                      MOUNTING     12-7/8”
            (233mm)     CUT-OUT         4-1/2”                                            DIAGRAM     (327mm)
                                       (115mm)
             3-1/4”  A  A   A  A
            (82mm)                3-1/4”       10-1/4” (260mm)                     6”                         12-7/8”
                                 (82mm)                                                        12”
                MOUNTING CUT-OUT DIAGRAM       SECTION                            (150mm)    (305mm)          (327mm)
            SPECIFICATIONS
            BALLAST: Universal 120-277v, 50 or 60 Hz, T8, UL Listed     11-1/2”
            LAMPS: T8 Fluorescent lamps (not furnished)               (240mm) SQ.
            BODY: Steel with baked white enamel finish             14” (350mm) SQ. FACEPLATE            12”
            MOUNTING: #10-32 x 3/4” (20 mm) long threaded studs                            1/4” (6mm)  (305mm)
            REFLECTOR: Baked white enamel finish...providing a minimum of 87% diffused reflection   DIA. HOLES
            DIFFUSER: Crystal 73 tempered prismatic glass with prisms on inside of fixture, mounted
            into a stainless steel face frame with special sealing gasketing. Secured to fixture body with
            stainless steel screws for easy servicing.
                                                          800-526-3694                                              D13
