P. 72

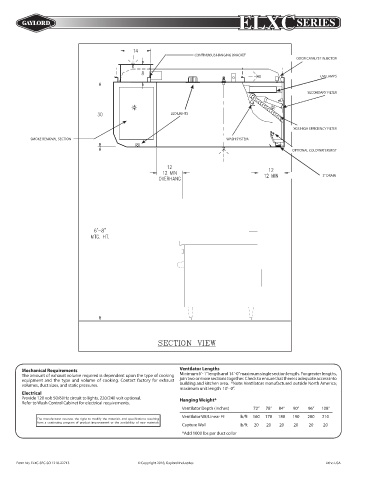

ELXC               SERIES







                                                                 CONTINUOUS HANGING BRACKET
                                                                                                   ODOR CATALYST INJECTOR

                                                                                                           UVi LAMPS


                                                                                                       SECONDARY FILTER


                                                         LED LIGHTS

                                                                                                  XGS HIGH EFFICIENCY FILTER
           SMOKE REMOVAL SECTION                                            WASH SYSTEM
                                                                                                  OPTIONAL COLD WATER MIST




                                                                                                            2” DRAIN






































        Mechanical Requirements                             Ventilator Lengths
        The amount of exhaust volume required is dependent upon the type of cooking   Minimum 6’- 1” length and 14’ -0” maximum single section length . For greater lengths,
        equipment and the type and volume of cooking. Contact factory for exhaust             join two or more sections together. Check to ensure that there is adequate access into
        volumes, duct sizes, and static pressures.          building and kitchen area.  *Note: Ventilators manufactured outside North America;
                                                            maximum unit length  10’- 0”.
        Electrical
        Provide 120 volt 50/60Hz circuit to lights, 220/240 volt optional.  Hanging Weight*
        Refer to Wash Control Cabinet for electrical requirements.
                                                             Ventilator Depth (inches)  72”  78”  84”  90”  96”  108”
                                                             Ventilator Wt/Linear Ft  lb/ft  160  170  180  190  200  210
             The manufacturer reserves the right to modify the materials and specifications resulting
             from a continuing program of product improvement or the availability of new materials
                                                             Capture Wall       lb/ft  20  20  20  20  20   20
                                                             *Add 1000 lbs per duct collar




      Form No. ELXC-SPC-SO 1218-22713          © Copyright 2018, Gaylord Industries                          Litho USA
