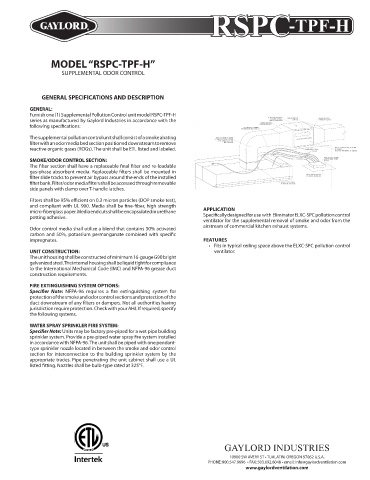

Page 77 - Gaylord Blue Book 2021

RSPC
RSPC -TPF-H
-TPF-H

MODEL “RSPC-TPF-H”
SUPPLEMENTAL ODOR CONTROL

GENERAL SPECIFICATIONS AND DESCRIPTION

GENERAL:
Furnish one (1) Supplemental Pollution Control unit model RSPC-TPF-H
series as manufactured by Gaylord Industries in accordance with the
following specifications:

The supplemental pollution control unit shall consist of a smoke abating
filter with an odor media bed section positioned downstream to remove
reactive organic gases (ROGs). The unit shall be ETL listed and labeled.
SMOKE/ODOR CONTROL SECTION:
The filter section shall have a replaceable final filter and re-loadable
gas-phase absorbent media. Replaceable filters shall be mounted in
filter slide tracks to prevent air bypass around the ends of the installed
filter bank. Filter/odor media filters shall be accessed through removable
side panels with clamp over T-handle latches.

Filters shall be 95% efficient on 0.3 micron particles (DOP smoke test),
and compliant with UL 900. Media shall be fine-fiber, high strength
micro-fiberglass paper. Media end cuts shall be encapsulated in urethane APPLICATION
potting adhesive. Specifically designed for use with Eliminator ELXC-SPC pollution control
ventilator for the supplemental removal of smoke and odor from the
Odor control media shall utilize a blend that contains 50% activated airstream of commercial kitchen exhaust systems.
carbon and 50%, potassium permanganate combined with specific
impregnates. FEATURES
• Fits in typical ceiling space above the ELXC-SPC pollution control
UNIT CONSTRUCTION: ventilator.
The unit housing shall be constructed of minimum 16-gauge G90 bright
galvanized steel. The internal housing shall be liquid tight for compliance
to the International Mechanical Code (IMC) and NFPA-96 grease duct
construction requirements.
FIRE EXTINGUISHING SYSTEM OPTIONS:
Specifier Note: NFPA-96 requires a fire extinguishing system for
protection of the smoke and odor control sections and protection of the
duct downstream of any filters or dampers. Not all authorities having
jurisdiction require protection. Check with your AHJ. If required, specify
the following systems.
WATER SPRAY SPRINKLER FIRE SYSTEM:
Specifier Note: Units may be factory pre-piped for a wet pipe building
sprinkler system. Provide a pre-piped water spray fire system installed
in accordance with NFPA-96. The unit shall be piped with one pendant-
type sprinkler nozzle located in between the smoke and odor control
section for interconnection to the building sprinkler system by the
appropriate trades. Pipe penetrating the unit cabinet shall use a UL
listed fitting. Nozzles shall be bulb-type rated at 325°F.

GAYLORD INDUSTRIES

10900 SW AVERY ST • TUALATIN, OREGON 97062 U.S.A.
PHONE: 800.547.9696 • FAX: 503.692.6048 • email: info@gaylordventilation.com
www.gaylordventilation.com
