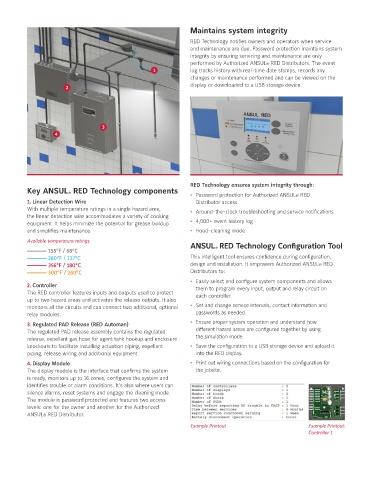

Page 122 - Gaylord Blue Book 2021

Maintains system integrity

RED Technology notifies owners and operators when service
and maintenance are due. Password protection maintains system
integrity by ensuring servicing and maintenance are only
performed by Authorized ANSUL® RED Distributors. The event
log tracks history with real-time date stamps, records any
changes or maintenance performed and can be viewed on the
display or downloaded to a USB storage device.

RED Technology ensures system integrity through:
Key ANSUL ® RED Technology components
• Password protection for Authorized ANSUL® RED
1. Linear Detection Wire Distributor access
With multiple temperature ratings in a single hazard area, • Around-the-clock troubleshooting and service notifications
the linear detection wire accommodates a variety of cooking
equipment. It helps minimize the potential for grease buildup • 4,000+ event history log
and simplifies maintenance. • Hood-cleaning mode
Available temperature ratings
ANSUL ® RED Technology Configuration Tool
155°F / 68°C
280°F / 137°C This intelligent tool ensures confidence during configuration,
356°F / 180°C design and installation. It empowers Authorized ANSUL® RED
500°F / 260°C Distributors to:
• Easily select and configure system components and allows
2. Controller them to program every input, output and relay circuit on
The RED controller features inputs and outputs used to protect each controller.
up to two hazard areas and activates the release outputs. It also
monitors all the circuits and can connect two additional, optional • Set and change service intervals, contact information and
relay modules. passwords as needed.
3. Regulated PAD Release (RED Automan) • Ensure proper system operation and understand how
The regulated PAD release assembly contains the regulated different hazard areas are configured together by using
release, expellant gas hose for agent tank hookup and enclosure the simulation mode.
knockouts to facilitate installing actuation piping, expellant • Save the configuration to a USB storage device and upload it
piping, release wiring and additional equipment. into the RED display.
4. Display Module • Print out wiring connections based on the configuration for
The display module is the interface that confirms the system the jobsite.
is ready, monitors up to 16 zones, configures the system and
identifies trouble or alarm conditions. It’s also where users can
silence alarms, reset systems and engage the cleaning mode.
The module is password protected and features two access
levels: one for the owner and another for the Authorized
ANSUL® RED Distributor.
Example Printout Example Printout:
Controller 1
