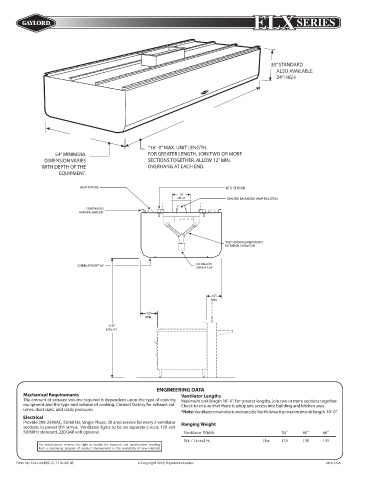

ELX           SERIES









                                                                                           30” STANDARD
                                                                                                ALSO AVAILABLE
                                                                                                24” HIGH













                                                  *16’ -0” MAX. UNIT LENGTH.
                   54” MINIMUM.                   FOR GREATER LENGTH, JOIN TWO OR MORE
                DIMENSION VARIES                  SECTIONS TOGETHER. ALLOW 12” MIN.
               WITH DEPTH OF THE                  OVERHANG AT EACH END.
                     EQUIPMENT.

                           LIGHT FIXTURE                                    “AUTOSTART” SENSOR
                                                                            RTD SENSOR
                                                            10”
                                                            OR 12”          GAYLORD BALANCING DAMPER (LISTED)
                              CONTINUOUS
                           HANGING BRACKET




                                                                           “XGS” SUPER HIGH EFFICIENCY
                                                                           FILTRATION EXTRACTOR

                                                                  0.5 GALLON
                           SUPERCAPTURE™ LIP
                                                                  GREASE CUP


                                                                       12”
                                                                       MIN.

                                                 12”
                                                 MIN.
                                     6’-8”
                                    MTG. HT.










                                                     ENGINEERING DATA
         Mechanical Requirements                             Ventilator Lengths
         The amount of exhaust volume required is dependent upon the type of cooking   Maximum unit length 16’-0”. For greater lengths, join two or more sections together.
         equipment and the type and volume of cooking. Contact factory for exhaust vol-  Check to ensure that there is adequate access into building and kitchen area.
         umes, duct sizes, and static pressures.
                                                             *Note: Ventilators manufactured outside North America; maximum unit length  10’-0”.
         Electrical
         Provide 208-250VAC, 50/60 Hz, Single Phase, 20 amp service for every 2 ventilator   Hanging Weight
         sections to power UVi lamps.  Ventilator lights to be on separate circuit, 120 volt
         50/60Hz standard, 220/240 volt optional.             Ventilator Width                54”    60”    66”
                                                              Wt. / Lineal Ft.          Lbs.  125    130    135
              The manufacturer reserves the right to modify the materials and specifications resulting
              from a continuing program of product improvement or the availability of new materials

      Form No. ELX-UVi-BBC-CL 1218-20198       © Copyright 2018, Gaylord Industries                          Litho USA
