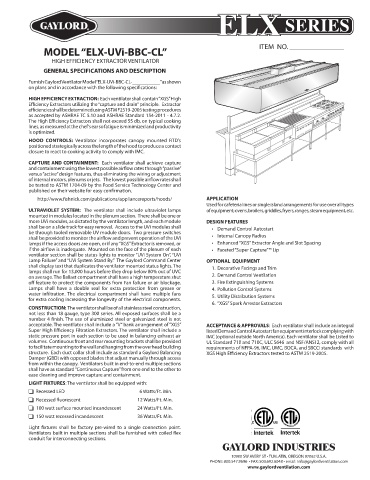

Page 50 - Gaylord Blue Book 2021

ELX SERIES

MODEL “ELX-UVi-BBC-CL” ITEM NO. _______________

HIGH EFFICIENCY EXTRACTOR VENTILATOR
GENERAL SPECIFICATIONS AND DESCRIPTION
Furnish Gaylord Ventilator Model “ELX-UVi-BBC-CL-___________” as shown
on plans and in accordance with the following specifications:

HIGH EFFICIENCY EXTRACTION: Each ventilator shall contain “XGS” High
Efficiency Extractors utilizing the “capture and drain” principle. Extractor
efficiencies shall be determined using ASTM F2519-2005 testing procedures
as accepted by ASHRAE TC 5.10 and ASHRAE Standard 154-2011 - 4.7.2.
The High Efficiency Extractors shall not exceed 55 db, on typical cooking
lines, as measured at the chef’s ear so fatigue is minimized and productivity
is optimized.
HOOD CONTROLS: Ventilator incorporates canopy mounted RTD’s
positioned strategically across the length of the hood to produce a contact
closure to react to cooking activity to comply with IMC.
CAPTURE AND CONTAINMENT: Each ventilator shall achieve capture
and containment using the lowest possible airflow rates through “passive”
versus “active” design features, thus eliminating the wiring or adjustment
of internal motors, plenums or jets. The lowest possible airflow rates shall
be tested to ASTM 1704-09 by the Food Service Technology Center and
published on their website for easy confirmation.
http://www.fishnick.com/publications/appliancereports/hoods/ APPLICATION
Used for cafeteria lines or single island arrangements for use over all types
ULTRAVIOLET SYSTEM: The ventilator shall include ultraviolet lamps of equipment; ovens, broilers, griddles, fryers, ranges, steam equipment, etc.
mounted in modules located in the plenum section. There shall be one or
more UVi modules, as dictated by the ventilator length, and each module DESIGN FEATURES
shall be on a slide track for easy removal. Access to the UVi modules shall • Demand Control Autostart
be through tooled removable UV module doors. Two pressure switches
shall be provided to monitor the airflow and prevent operation of the UVi • Internal Canopy Radius
lamps if the access doors are open, or if any “XGS” Extractor is removed, or • Enhanced “XGS” Extractor Angle and Slot Spacing
if the airflow is inadequate. Mounted on the face of the plenum of each • Faceted “Super Capture”™ Lip
ventilator section shall be status lights to monitor “UVi System On”, “UVi
Lamp Failure” and “UVi System Stand By.” The Gaylord Command Center OPTIONAL EQUIPMENT
shall display text that duplicates the ventilator mounted status lights. The 1. Decorative Facings and Trim
lamps shall run for 13,000 hours before they drop below 80% out of UVC
on average. The Ballast compartment shall have a high temperature shut 2. Demand Control Ventilation
off feature to protect the components from Fan failure or air blockage. 3. Fire Extinguishing Systems
Lamps shall have a double seal for extra protection from grease or 4. Pollution Control Systems
water infiltration. The electrical compartment shall have multiple fans 5. Utility Distribution Systems
for extra cooling increasing the longevity of the electrical components.
6. “XGS” Spark Arrestor Extractors
CONSTRUCTION: The ventilator shall be of all stainless steel construction,
not less than 18 gauge, type 300 series. All exposed surfaces shall be a
number 4 finish. The use of aluminized steel or galvanized steel is not
acceptable. The ventilator shall include a “V” bank arrangement of “XGS” ACCEPTANCE & APPROVALS: Each ventilator shall include an integral
Super High Efficiency Filtration Extractors. The ventilator shall include a listed Demand Control Autostart fan equipment interlock complying with
static pressure port in each section to be used in balancing exhaust air IMC (optional outside North America). Each ventilator shall be Listed to
volumes. Continuous front and rear mounting brackets shall be provided UL Standard 710 and 710C, ULC S646 and NSF/ANSI 2, comply with all
to facilitate mounting to the wall and hanging from the overhead building requirements of NFPA-96, IMC, UMC, BOCA, and SBCCI standards with
structure. Each duct collar shall include as standard a Gaylord Balancing XGS High Efficiency Extractors tested to ASTM 2519-2005.
Damper (GBD) with opposed blades that adjust manually through access
from within the canopy. Ventilators built in end-to-end multiple sections
shall have as standard “Continuous Capture” from one end to the other to
ease cleaning and improve capture and containment.
LIGHT FIXTURES: The ventilator shall be equipped with:
 Recessed LED 6 Watts/Ft. Min.
 Recessed fluorescent 12 Watts/Ft. Min.
 100 watt surface mounted incandescent 24 Watts/Ft. Min.
 150 watt recessed incandescent 36 Watts/Ft. Min.

Light fixtures shall be factory pre-wired to a single connection point.
Ventilators built in multiple sections shall be furnished with coiled flex
conduit for interconnecting sections.
