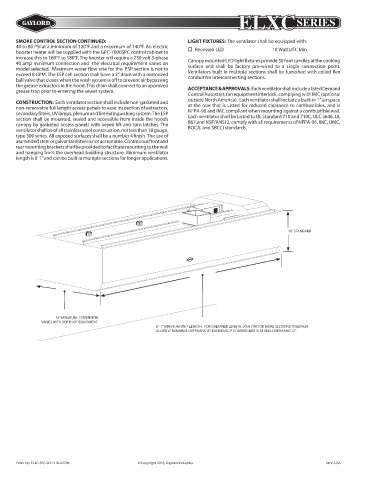

P. 65

ELXC               SERIES




      SMOKE CONTROL SECTION CONTINUED:                         LIGHT FIXTURES: The ventilator shall be equipped with:
      40 to 80 PSI at a minimum of 120°F and a maximum of 140°F. An electric   o  Recessed LED                                             10 Watts/Ft. Min.
      booster heater will be supplied with the GPC-7000SPC control cabinet to
      increase this to 160°F to 180°F. The booster will require a 230 volt 3-phase
      40 amp minimum connection and  the electrical requirement varies on   Canopy mounted LED light fixtures provide 50 foot candles at the cooking
      model selected.  Maximum water flow rate for the  ESP section is not to   surface and shall be factory pre-wired to a single connection point.
                                                               Ventilators built in multiple sections shall be furnished with coiled flex
      exceed 8 GPM. The ESP cell section shall have a 2” drain with a motorized   conduit for interconnecting sections.
      ball valve that closes when the wash system is off to prevent air bypassing
      the grease extractors in the hood. This drain shall connect to an approved
      grease trap prior to entering the sewer system.          ACCEPTANCE & APPROVALS:  Each ventilator shall include a listed Demand
                                                               Control Autostart, fan equipment interlock, complying with IMC (optional
                                                               outside North America).  Each ventilator shall include a built-in 1” air space
      CONSTRUCTION:  Each ventilator section shall include non-gasketed and
      non-removable full length access panels to ease inspection of extractors,   at the rear that is Listed for reduced clearance to combustibles, and is
      secondary filters, UV lamps, plenum and fire extinguishing system. The ESP   NFPA-96 and IMC compliant when mounting against a combustible wall.
      section shall be mounted, sealed and accessible from inside the hood’s   Each ventilator shall be Listed to UL Standard 710 and 710C, ULC S646, UL
      canopy by gasketed access panels with keyed lift and turn latches. The   867 and NSF/ANSI 2, comply with all requirements of NFPA-96, IMC, UMC,
                                                               BOCA, and SBCCI standards.
      ventilator shall be of all stainless steel construction, not less than 18 gauge,
      type 300 series. All exposed surfaces shall be a number 4 finish. The use of
      aluminized steel or galvanized steel is not acceptable. Continuous front and
      rear mounting brackets shall be provided to facilitate mounting to the wall
      and hanging from the overhead building structure. Minimum ventilator
      length is 6’ 1” and can be built in multiple sections for longer applications.












                                                                                                30” STANDARD
















                   74” MINIMUM - DIMENSION
               VARIES WITH DEPTH OF EQUIPMENT.
                                                     6’- 1” MINIMUM UNIT LENGTH.  FOR GREATHER LENGTH, JOIN TWO OR MORE SECTIONS TOGETHER.
                                                     ALLOW 6” MINIMUM OVERHANG AT EACH END. IF CHARBROILER IS AT END, OVERHANG 12”.

























      Form No. ELXC-SPC-SO 1218-22706          © Copyright 2018, Gaylord Industries                          Litho USA
