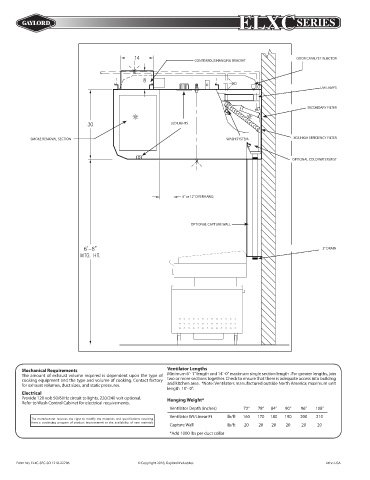

ELXC SERIES

ODOR CATALYST INJECTOR
CONTINUOUS HANGING BRACKET

UVi LAMPS

SECONDARY FILTER

LED LIGHTS

SMOKE REMOVAL SECTION WASH SYSTEM XGS HIGH EFFICIENCY FILTER

OPTIONAL COLD WATER MIST

6” or 12” OVERHANG

OPTIONAL CAPTURE WALL

2” DRAIN

Mechanical Requirements Ventilator Lengths
The amount of exhaust volume required is dependent upon the type of Minimum 6’- 1” length and 14’ -0” maximum single section length . For greater lengths, join
cooking equipment and the type and volume of cooking. Contact factory two or more sections together. Check to ensure that there is adequate access into building
for exhaust volumes, duct sizes, and static pressures. and kitchen area. *Note: Ventilators manufactured outside North America; maximum unit
length 10’- 0”.
Electrical
Provide 120 volt 50/60Hz circuit to lights, 220/240 volt optional. Hanging Weight*
Refer to Wash Control Cabinet for electrical requirements.
Ventilator Depth (inches) 72” 78” 84” 90” 96” 108”
Ventilator Wt/Linear Ft lb/ft 160 170 180 190 200 210
The manufacturer reserves the right to modify the materials and specifications resulting
from a continuing program of product improvement or the availability of new materials
Capture Wall lb/ft 20 20 20 20 20 20
*Add 1000 lbs per duct collar

Form No. ELXC-SPC-SO 1218-22706 © Copyright 2018, Gaylord Industries Litho USA
