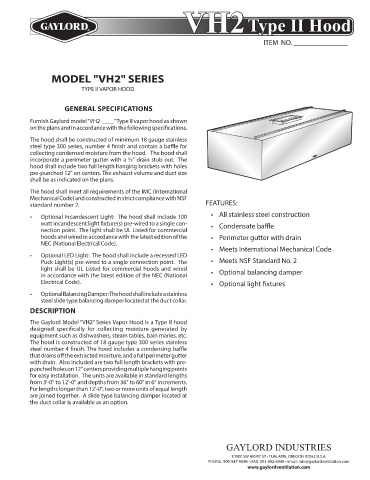

Page 85 - Gaylord Blue Book 2021

VH2
VH2 Type II Hood
ype II Hood
T

ITEM NO. _______________

MODEL "VH2" SERIES

TYPE II VAPOR HOOD

GENERAL SPECIFICATIONS

Furnish Gaylord model “VH2-____” Type II vapor hood as shown
on the plans and in accordance with the following specifications.
The hood shall be constructed of minimum 18 gauge stainless
steel type 300 series, number 4 finish and contain a baffle for
collecting condensed moisture from the hood. The hood shall
incorporate a perimeter gutter with a ½" drain stub out. The
hood shall include two full length hanging brackets with holes
pre-punched 12" on centers. The exhaust volume and duct size
shall be as indicated on the plans.

The hood shall meet all requirements of the IMC (International
Mechanical Code) and constructed in strict compliance with NSF
standard number 2. FEATURES:
• Optional Incandescent Light: The hood shall include 100 • All stainless steel construction
watt incandescent light fixture(s) pre-wired to a single con- • Condensate baffle
nection point. The light shall be UL Listed for commercial
hoods and wired in accordance with the latest edition of the • Perimeter gutter with drain
NEC (National Electrical Code).
• Meets International Mechanical Code
• Optional LED Light: The hood shall include a recessed LED
Puck Light(s) pre-wired to a single connection point. The • Meets NSF Standard No. 2
light shall be UL Listed for commercial hoods and wired
in accordance with the latest edition of the NEC (National • Optional balancing damper
Electrical Code). • Optional light fixtures

• Optional Balancing Damper: The hood shall include a stainless
steel slide type balancing damper located at the duct collar.
DESCRIPTION

The Gaylord Model “VH2” Series Vapor Hood is a Type II hood
designed specifically for collecting moisture generated by
equipment such as dishwashers, steam tables, bain maries, etc.
The hood is constructed of 18 gauge type 300 series stainless
steel number 4 finish. The hood includes a condensing baffle
that drains off the extracted moisture, and a full perimeter gutter
with drain. Also included are two full length brackets with pre-
punched holes on 12" centers providing multiple hanging points
for easy installation. The units are available in standard lengths
from 3'-0" to 12'-0" and depths from 36" to 60" in 6" increments.
For lengths longer than 12'-0", two or more units of equal length
are joined together. A slide type balancing damper located at
the duct collar is available as an option.

GAYLORD INDUSTRIES

10900 SW AVERY ST • TUALATIN, OREGON 97062 U.S.A.
PHONE: 800-547-9696 • FAX: 503-692-6048 • email: info@gaylordventilation.com
www.gaylordventilation.com
