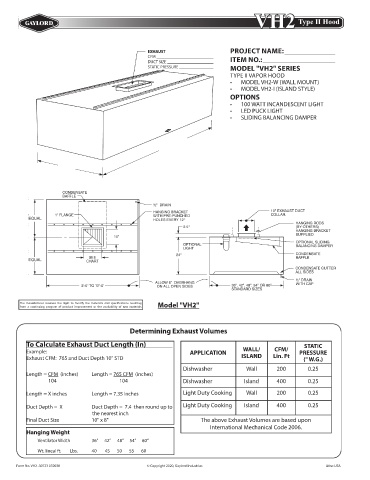

Page 86 - Gaylord Blue Book 2021

VH2
VH2 Type II Hood
ype II Hood
T

EXHAUST PROJECT NAME: ______________
CFM ITEM NO.: ____________________
DUCT SIZE
STATIC PRESSURE MODEL "VH2" SERIES
TYPE II VAPOR HOOD
• MODEL VH2-W (WALL MOUNT)
• MODEL VH2-I (ISLAND STYLE)
OPTIONS
• 100 WATT INCANDESCENT LIGHT
• LED PUCK LIGHT
• SLIDING BALANCING DAMPER

The manufacturer reserves the right to modify the materials and specifications resulting Model "VH2"
from a continuing program of product improvement or the availability of new materials

Determining Exhaust Volumes

To Calculate Exhaust Duct Length (In) STATIC
Example: APPLICATION WALL/ CFM/ PRESSURE
Exhaust CFM: 765 and Duct Depth 10" STD ISLAND Lin. Ft (" W.G.)
Dishwasher Wall 200 0.25
Length = CFM (inches) Length = 765 CFM (inches)
104 104 Dishwasher Island 400 0.25
Length = X inches Length = 7.35 inches Light Duty Cooking Wall 200 0.25

Duct Depth = X Duct Depth = 7.4 then round up to Light Duty Cooking Island 400 0.25
the nearest inch
Final Duct Size 10" x 8" The above Exhaust Volumes are based upon
International Mechanical Code 2006.
Hanging Weight
Ventilator Width 36" 42" 48” 54” 60”
Wt. lineal ft. Lbs. 40 45 50 55 60

Form No. VH2 -30723 032020 © Copyright 2020, Gaylord Industries Litho USA
