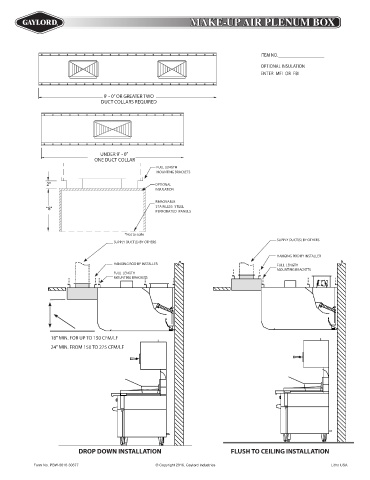

MAKE-UP AIR PLENUM BOX

ITEM NO. _____________________
OPTIONAL INSULATION
ENTER MFI OR FBI

9' - 0” OR GREATER TWO
DUCT COLLARS REQUIRED

UNDER 9' - 0"
ONE DUCT COLLAR
FULL LENGTH
MOUNTING BRACKETS
2" OPTIONAL
INSULATION
REMOVABLE
*8" STAINLESS STEEL
PERFORATED PANELS

*Not to scale
SUPPLY DUCT(S) BY OTHERS
SUPPLY DUCT(S) BY OTHERS
HANGING ROD BY INSTALLER

HANGING ROD BY INSTALLER FULL LENGTH
MOUNTING BRACKETS
FULL LENGTH
MOUNTING BRACKETS

18" MIN. FOR UP TO 150 CFM/LF
24" MIN. FROM 150 TO 275 CFM/LF

DROP DOWN INSTALLATION FLUSH TO CEILING INSTALLATION

Form No. PBW-0616-30677 © Copyright 2016, Gaylord Industries Litho USA
